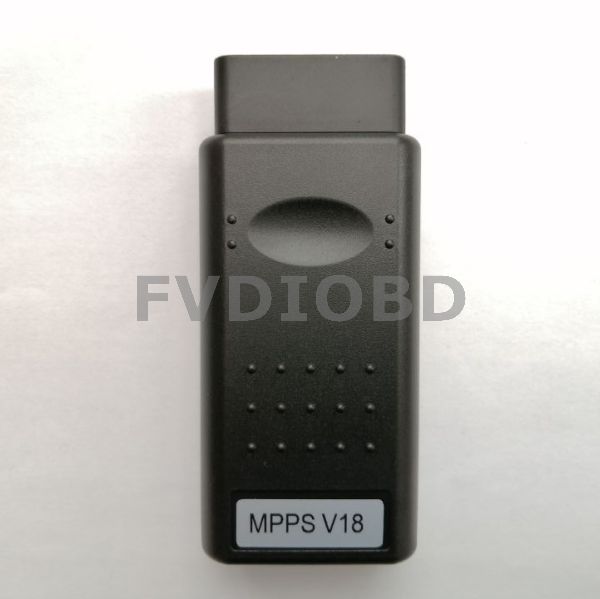

MPPS V18 MAIN + TRICORE + MULTIBOOT with Breakout Tricore Cable Firmware 1.09.03
MPPS V18 module adds support for advanced functions on Marelli ECU’s. MPPS covers a range of controllers including M3.8, M5.9, ME7xx, MED9, MED17, EDC15/16/17, Delphi, Siemens, Marelli, Delco, Sagem, Trionic and many others…
- Buy 5 for $18.00 each and save 3%
Related Products
MPPS V13.02 Chip Tuning
MPPS V22 MPPS Master V22.2.3.5 No Times Limitation
Tricore Adapter Set for MPPS V22
1. Please install on Win7 system
2. Please install driver well then run software, otherwise the software can't be opened. Please make sure you use the driver from our CD, NOT use driver for other MPPS version.
MPPS V18 MAIN + TRICORE + MULTIBOOT with Breakout Tricore Cable
Warranty: 1 year
Supports Multi-language:
MultiBoot
MPPS V18.12.3.8 supports advanced functions on Marelli ECU's:
Fiat 6F3 – Full Read / Write Micro, Flash and EEprom over K-line and CAN.
Fiat 6JF – Full Read / Write Micro and EEprom over K-line.
Fiat 8DF – Full Read / Write Micro and EEprom over K-line.
Fiat 8F2 – Full Read / Write Micro and EEprom over K-line and CAN.
Fiat 8F3 – Full Read / Write Micro and EEprom over K-line and CAN.
Fiat 8GM – Full Read / Write Micro and EEprom over CAN.
Fiat 8GS – Full Read / Write Micro and EEprom over CAN.
Fiat 5SF3 – Full Read / Write Flash and EEprom over CAN.
Fiat 5SF3 – Full Read / Write EEprom over K-Line.
Fiat 5SF8 – Full Read / Write Flash and EEprom over K-line and CAN.
Fiat 5SF9 – Full Read / Write Flash and EEprom over CAN.
Fiat ME7.9.10 – Full Read / Write Micro over CAN.
Fiat ME7.6.3 – Full Read / Write Micro over CAN.
Opel 6O2 – Full Read / Write Micro, Flash and EEprom over K-line and CAN.
Opel 6O3 – Full Read / Write Micro, Flash and EEprom over K-line and CAN.
Opel 6JO – Full Read / Write Micro and EEprom over K-line.
Tricore Boot
This module adds boot mode support for controllers with the tricore processor.
Read/Write of all memories Eeprom, Irom, Xrom (where possible)
Patch function for OBD Flashing of TPROT ECU’s (supports only VAG at the moment)
TPROT / DS check feature, for testing if TPROT is active without opening ECU.
Supports Bosch upto TP12
Supports Siemens (current only for ECU’s without password protection),
Support for unlocking of VAG Simos PCR and Simos 8.
Checksum Correction supported for Bosch MEDC17.
The MPPS ECU chip tuning cable is a powerful programming tool.
It offers general reading / writing operations and checksum support, however it also includes some additional features:
On certain controllers it even works when with no program is present (a blank memory).
Package includes:
1pc x Breakout Tricore cable
1pc x CD Software
MPPS V18 firmware main board PCB with NXP chip display:
| Weight | 0.150000 |
|---|
